types of cnc machine

CNC (Computer Numerical Control) machines have revolutionized manufacturing by automating precision machining processes. These machines are controlled by programmed software (G-code) and can produce highly accurate and repeatable parts. Below is an in-depth look at the different types of CNC machines, their applications, and industry uses.

1. CNC Milling Machines

CNC mills use rotating cutting tools to remove material from a workpiece. They are highly versatile and can perform operations like drilling, slotting, and contouring.

Types of CNC Milling Machines:

Vertical Machining Center (VMC) – Spindle is vertically oriented; ideal for 2.5D and 3D machining.

Horizontal Machining Center (HMC) – Spindle is horizontal, better for heavy cutting and pallet-changing systems.

5-Axis CNC Mill – Can move along X, Y, Z and rotate on A & B axes for complex geometries (e.g., aerospace parts).

Bed Mill – Worktable moves only in X & Y, spindle moves in Z (rigid for heavy cuts).

Gantry Mill – Bridge-like structure for large workpieces (e.g., molds, aerospace frames).

Applications:

Automotive parts

Aerospace components

Mold & die making

Prototyping

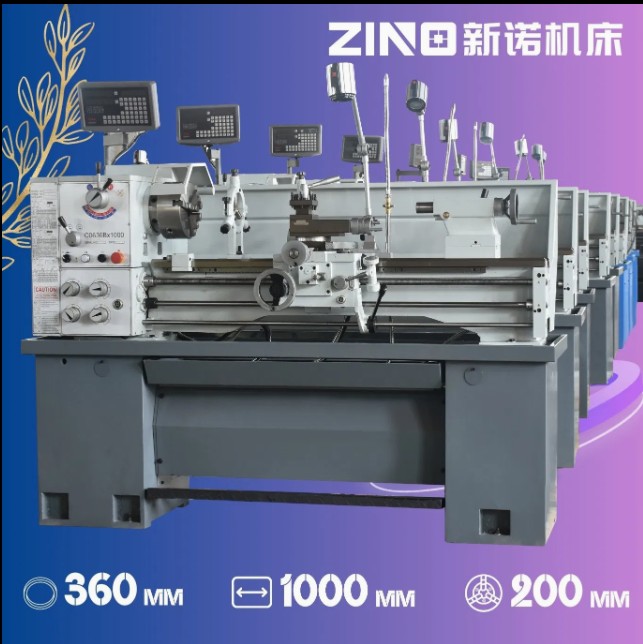

2. CNC Lathes (Turning Centers)

CNC lathes rotate the workpiece while a stationary cutting tool shapes it. They are ideal for cylindrical parts.

Types of CNC Lathes:

2-Axis CNC Lathe – Basic turning (X & Z axes).

Swiss-Type Lathe – High-precision for small, complex parts (medical screws, watch components).

Multi-Axis Turning Center – Includes live tooling for milling and drilling (e.g., Mazak Integrex).

Vertical Lathe – For heavy, large-diameter workpieces (e.g., turbine rotors).

Applications:

Shafts, bolts, screws

Medical implants

Automotive crankshafts

3. CNC Plasma Cutters

These machines use a plasma torch to cut through electrically conductive metals (steel, aluminum).

Types:

2D Plasma Cutter – Flat sheet cutting.

3D Plasma Cutter – For beveled edges and complex shapes.

Applications:

Metal fabrication

Automotive body panels

Industrial machinery frames

4. CNC Laser Cutters

Laser cutters use a high-power laser beam for precise cutting, engraving, or etching.

Types:

CO₂ Laser – For non-metals (wood, acrylic).

Fiber Laser – For metals (steel, titanium).

YAG Laser – High-precision for thin metals.

Applications:

Sheet metal fabrication

Jewelry engraving

Electronics PCB cutting

5. CNC Waterjet Cutters

These machines use high-pressure water (with abrasives) to cut almost any material.

Types:

Pure Waterjet – For soft materials (rubber, foam).

Abrasive Waterjet – For metals, stone, composites.

Applications:

Aerospace components

Architectural stone cutting

Automotive interiors

6. CNC EDM (Electrical Discharge Machining)

EDM removes material using electrical sparks, ideal for hard metals.

Types:

Wire EDM – Uses a thin wire to cut intricate shapes (e.g., turbine blades).

Sinker EDM – Uses an electrode to create cavities (e.g., injection molds).

Applications:

Tool & die making

Medical device manufacturing

7. CNC Routers

Similar to CNC mills but optimized for softer materials (wood, plastic).

Types:

3-Axis Router – Standard for woodworking.

4-Axis & 5-Axis Router – For complex carvings.

Applications:

Furniture making

Signage

Musical instruments

8. CNC Grinders

Used for high-precision surface finishing.

Types:

Surface Grinder – Flat surfaces.

Cylindrical Grinder – Round parts.

Tool & Cutter Grinder – Sharpens milling cutters.

Applications:

Automotive engine parts

Aerospace turbine blades

9. CNC Press Brakes

Used for bending sheet metal.

Types:

Hydraulic Press Brake – Traditional, strong.

Electric Press Brake – Faster, energy-efficient.

Applications:

Metal enclosures

HVAC ductwork

10. CNC Punch Presses

Punches holes or shapes into sheet metal.

Types:

Turret Punch Press – Multiple tools for varied shapes.

Single-Station Punch Press – Simpler, lower cost.

Applications:

Electrical cabinets

Automotive panels

11. CNC 3D Printers (Additive Manufacturing)

Builds parts layer by layer from materials like plastic, metal, or resin.

Types:

FDM (Fused Deposition Modeling) – Plastic parts.

SLS (Selective Laser Sintering) – Nylon, metal powders.

DMLS (Direct Metal Laser Sintering) – High-strength metal parts.

Applications:

Prototyping

Custom medical implants

12. CNC Tube & Pipe Benders

Specialized for bending metal tubes.

Applications:

Exhaust systems

Hydraulic tubing

Conclusion

CNC machines are essential in modern manufacturing, offering precision, efficiency, and automation. From milling and turning to laser cutting and 3D printing, each type serves specific industrial needs. As technology advances, hybrid CNC machines (combining additive and subtractive processes) are becoming more popular, further expanding manufacturing capabilities.
