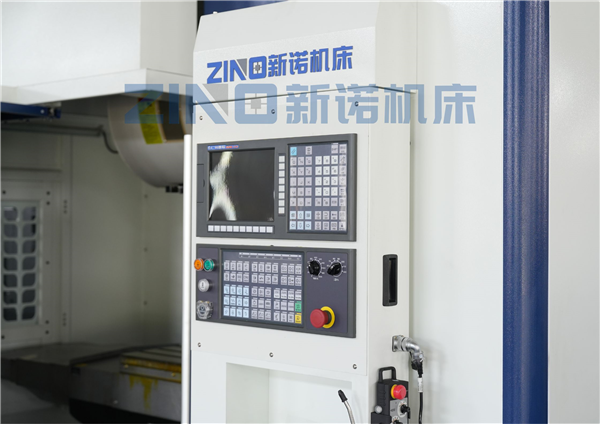

1. Controller - GSK, SIEMENS or FANUC
2. Table Size - 1200x600mm
3. Table Max Load - 800kg
4. X/Y/Z Travel - 1100/600/600mm
5. Tool Magazine - 24T
6. Spindle Motor - 11kw, Servo motor
Model
Nature
Visits
Update
Description

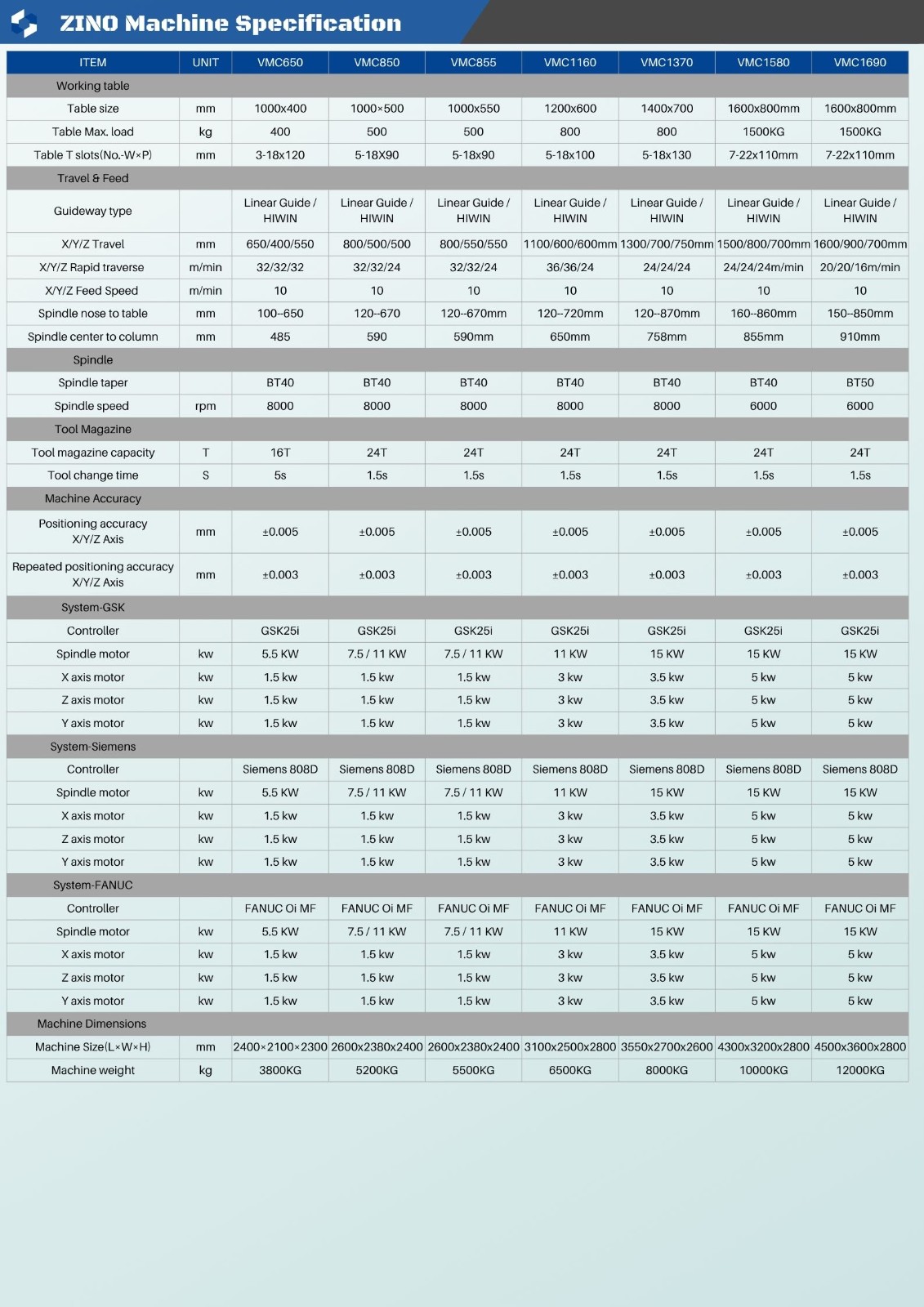

Basic Info.

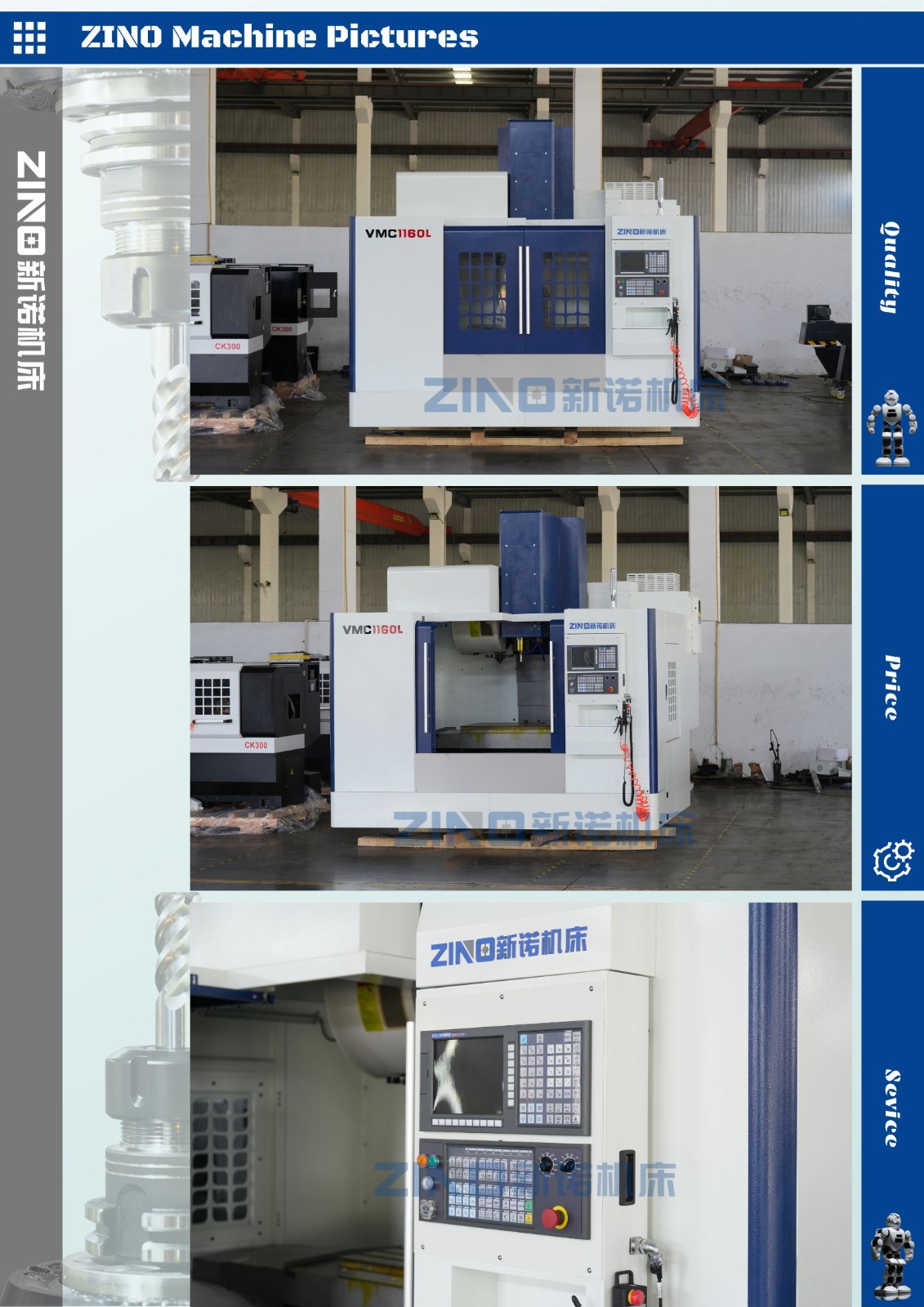

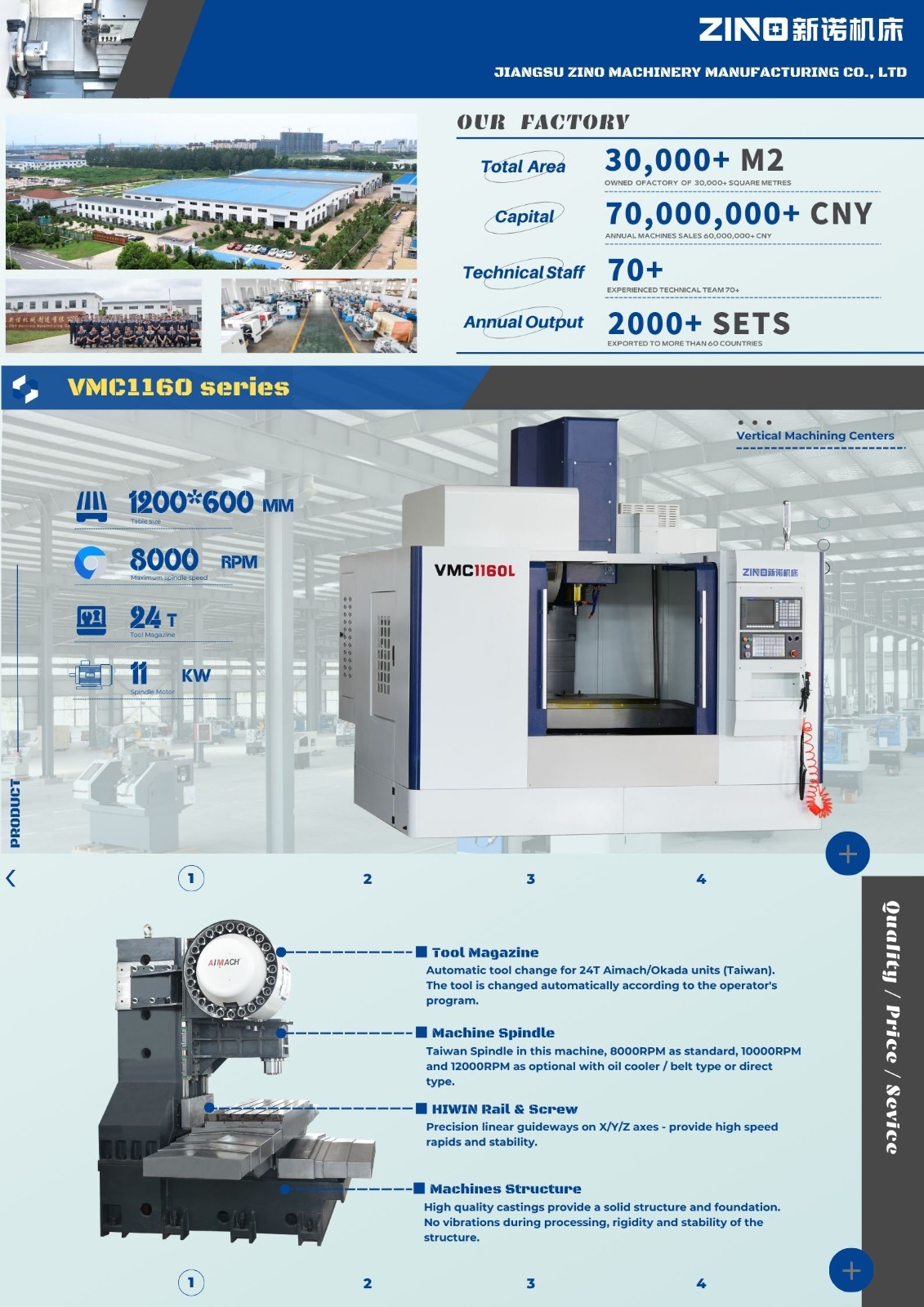

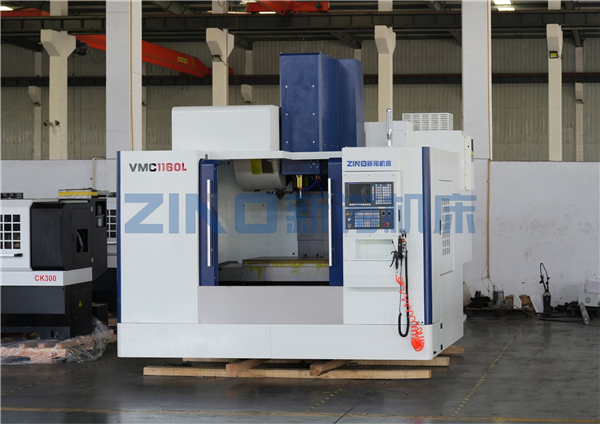

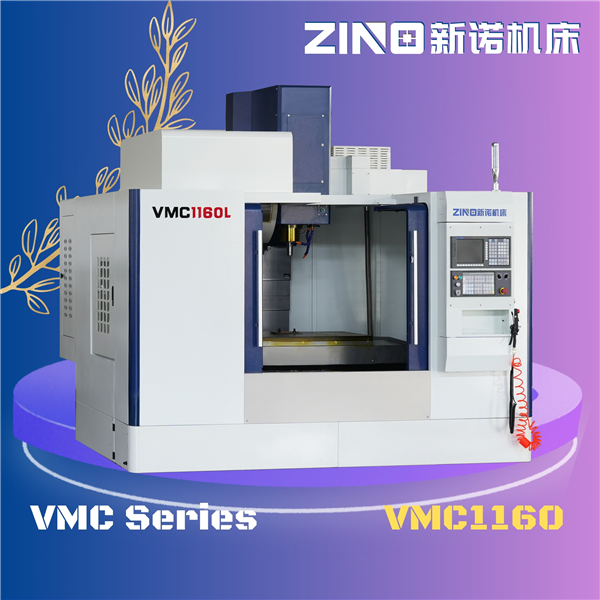

Model NO. | VMC1160 | Controller | Siemens808d Ver.15 |
Table Size | 1200X600mm | Spindle Speed | 8000 Rpm |

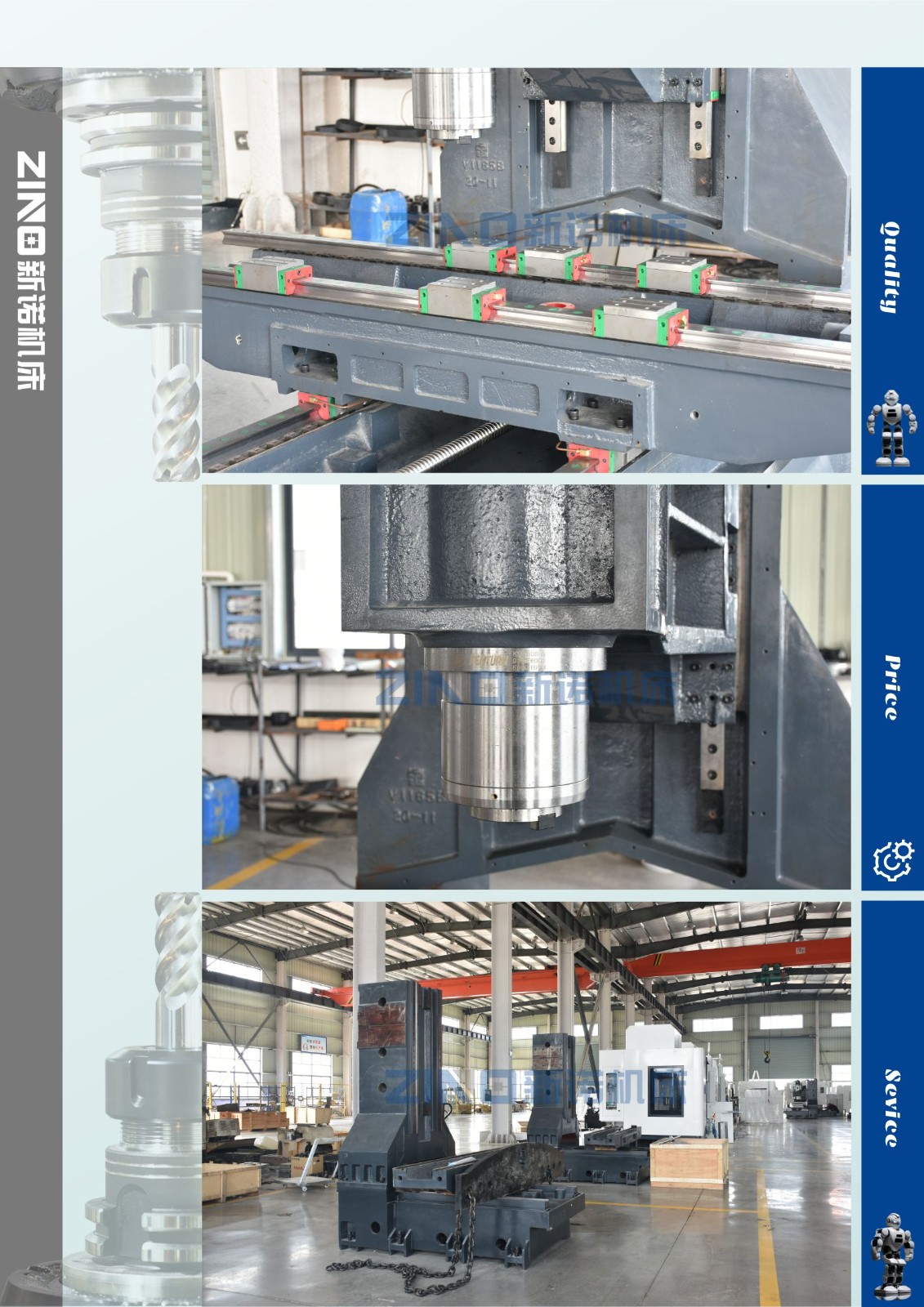

Tool Magazine Capacity | 24 /Arm | Guideway Type | Linear Guideway / Hiwin |
Spindle Motor Power | 11 Kw | Table T Slots(No.-W×p) | 5-18X100mm |
Table Max. Load | 800kg | X/Y/Z Rapid Traverse | 24/24/20 M/Min |
Spindle Seed | 22-2000rpm | Max.Length Of Workpiece | 2000mm |
Spindle Taper Hole | Bt40 | Spindle Nose to Table | 120-720mm |
X/Y/Z Travel | 1100/600/600mm | Spindle Center to Column | 650mm |
Positioning Accuracy | 0.005mm | Repeated Positioning Accuracy | 0.003mm |
Transport Package | Fumigation Package | Transport Package | Standard Wooden Case |
Specification | 3720x1120x1905mm | Specification | 3350× 2300× 2550mm |
Trademark | ZINO | Origin | Jiangsu Province |
Production Capacity | 200 Pieces / Year | HS Code | 8457101000 |
