| Customization: | Available |
|---|---|
| After-sales Service: | Yes |
| Warranty: | 12 Months |
Model
Nature
Visits
Update
Description

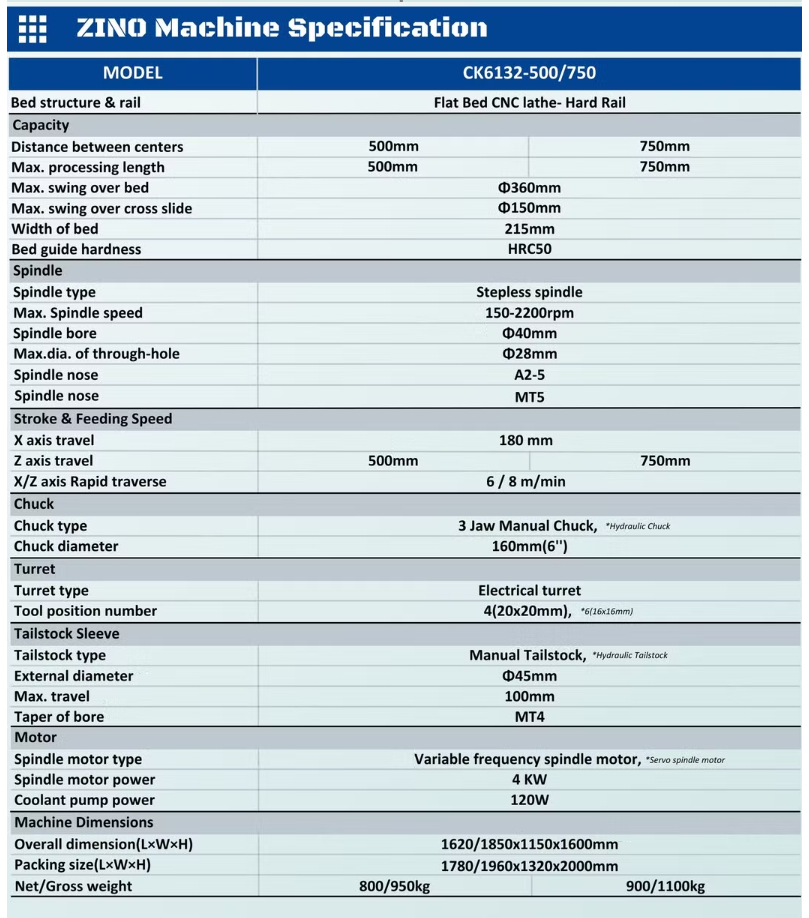

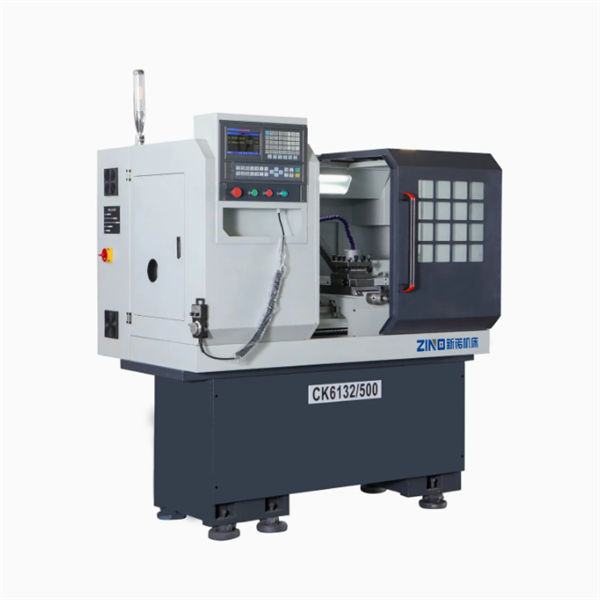

| Model NO. | Ck6132 | Controller | GSK980tdc |
| Max. Swing Over Bed | Φ360mm | Max. Process Length | 500mm |

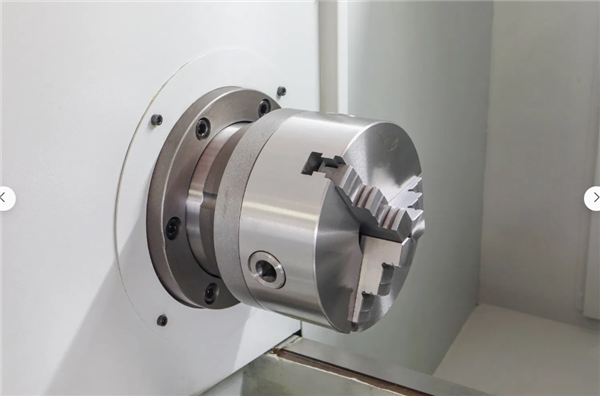

| Manual Chuck | 160mm | Spindle Motor | 4kw Motor |
| Spindle Bore | 40mm | Max.Dia. of Through-Hole | 28mm |
| Spindle Seed | 2200rpm | Distance Between Centers | 750mm |

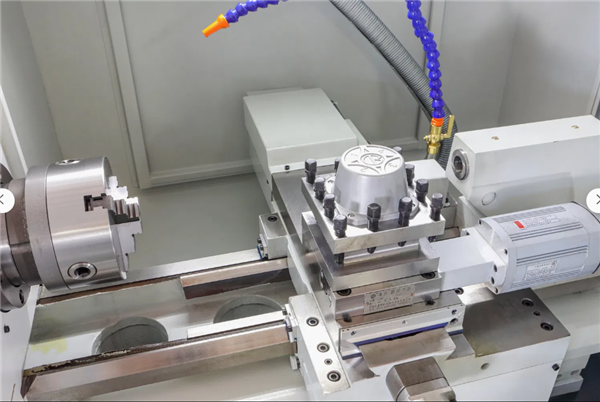

| Turret | 6 Station (16X16mm) | Max. Swing Over Cross Slide | Φ150mm |

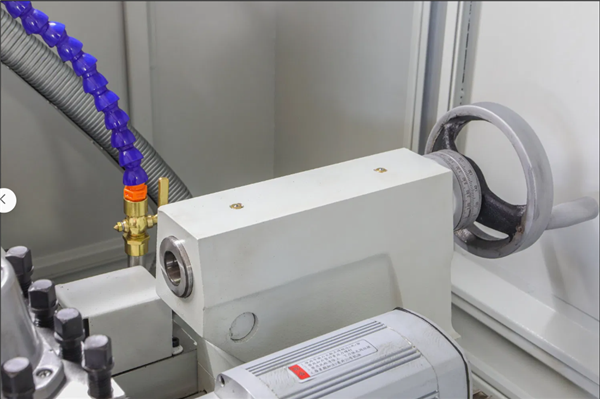

| Tailstock | Manual Tailstock | Spindle Nose | A2-5 |
| Transport Package | Fumigation Package | Specification | 1780x1320x2000mm |
| Trademark | ZINO | Origin | Jiangsu Province |
| HS Code | 8458110090 | Production Capacity | 200 Piece |
