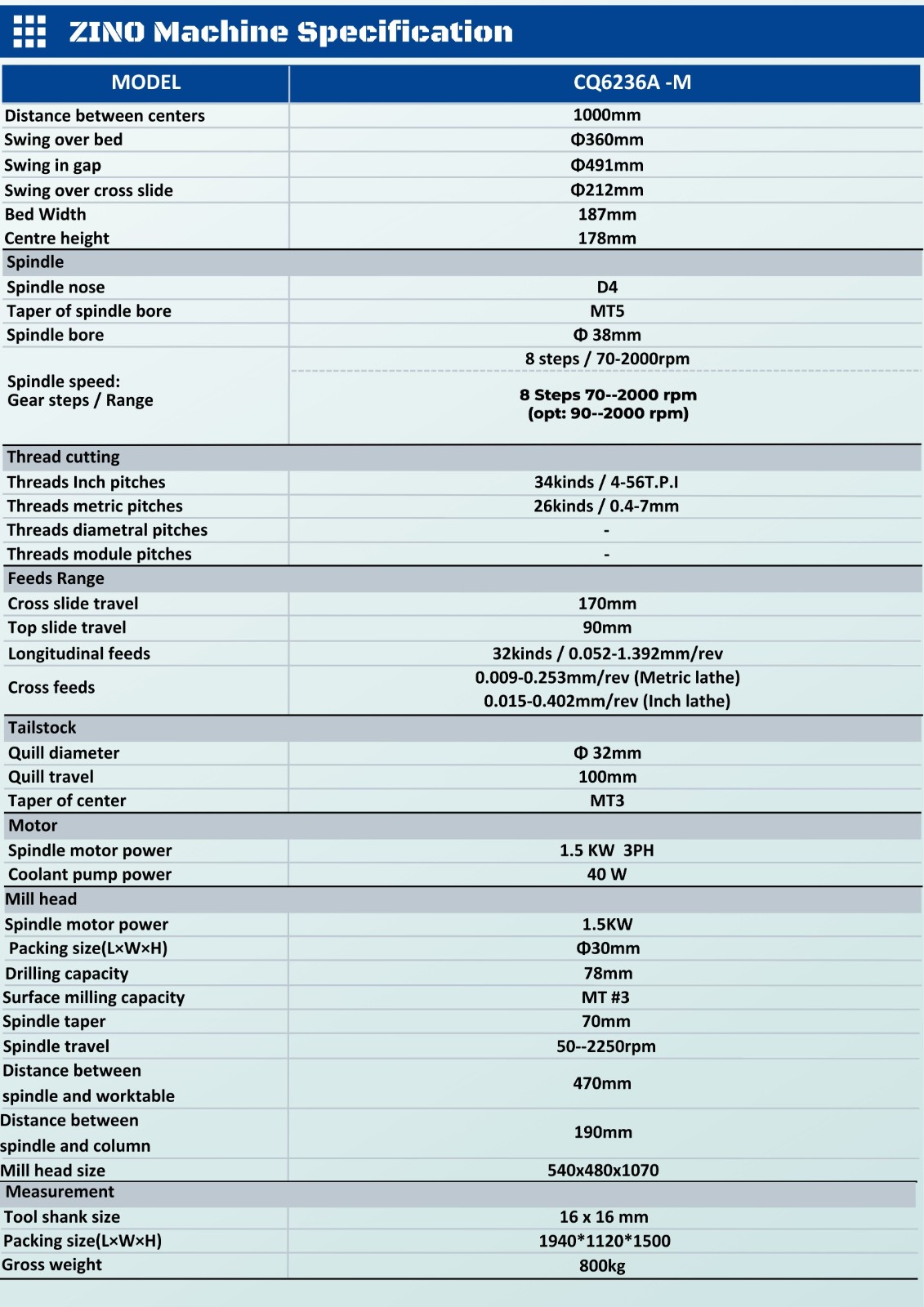

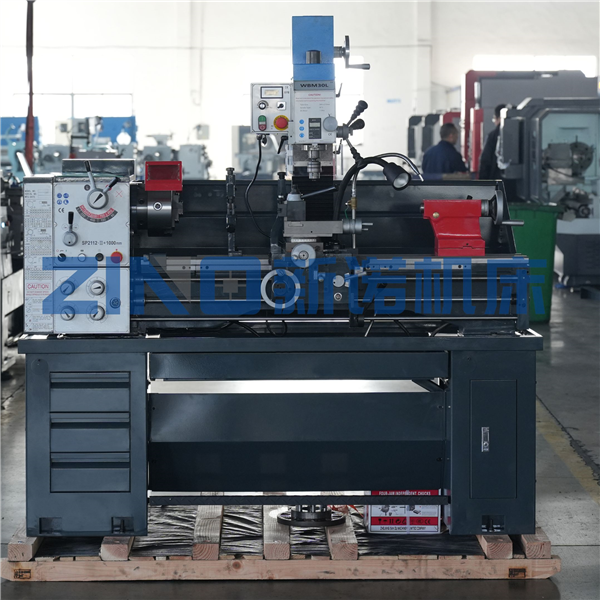

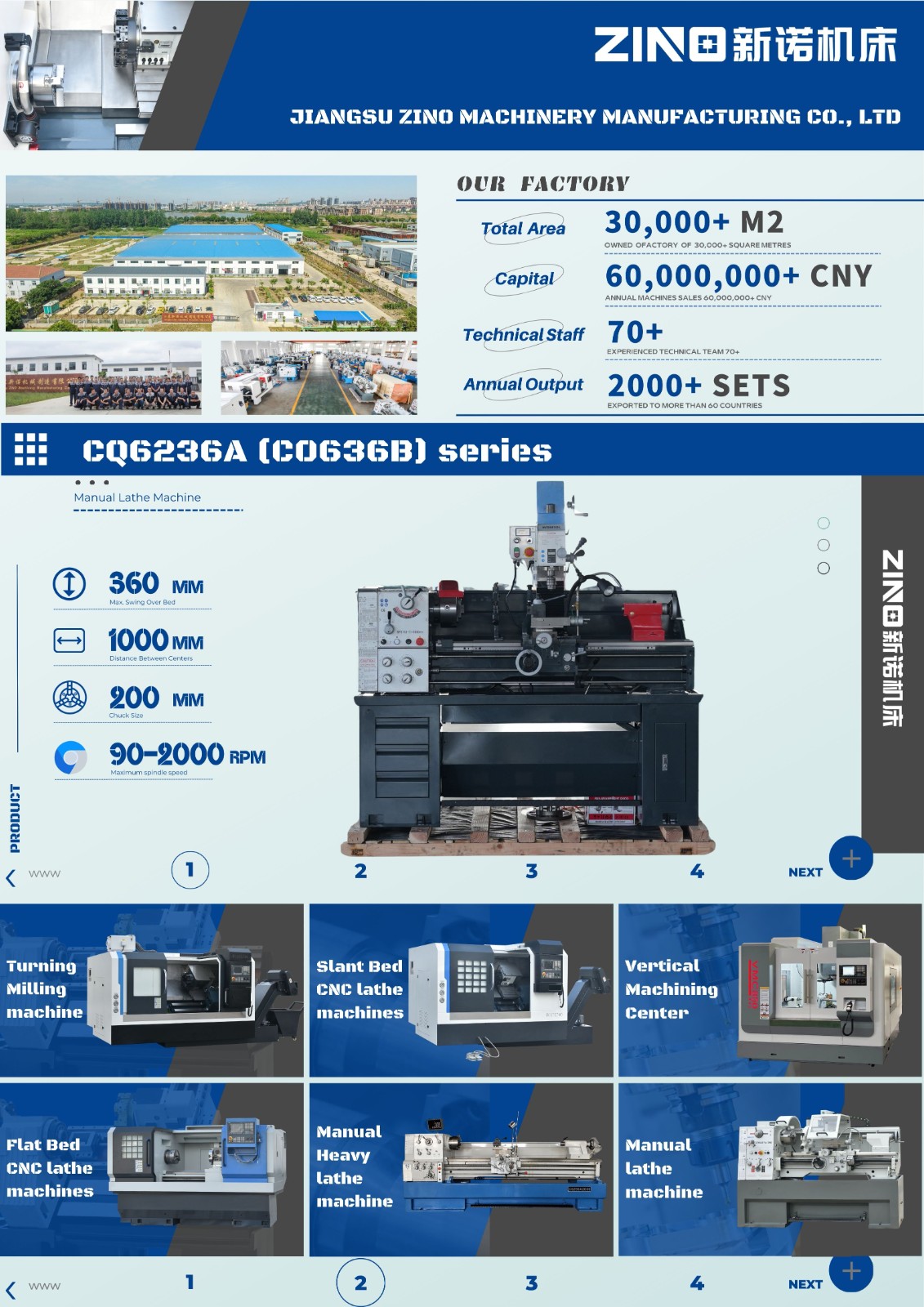

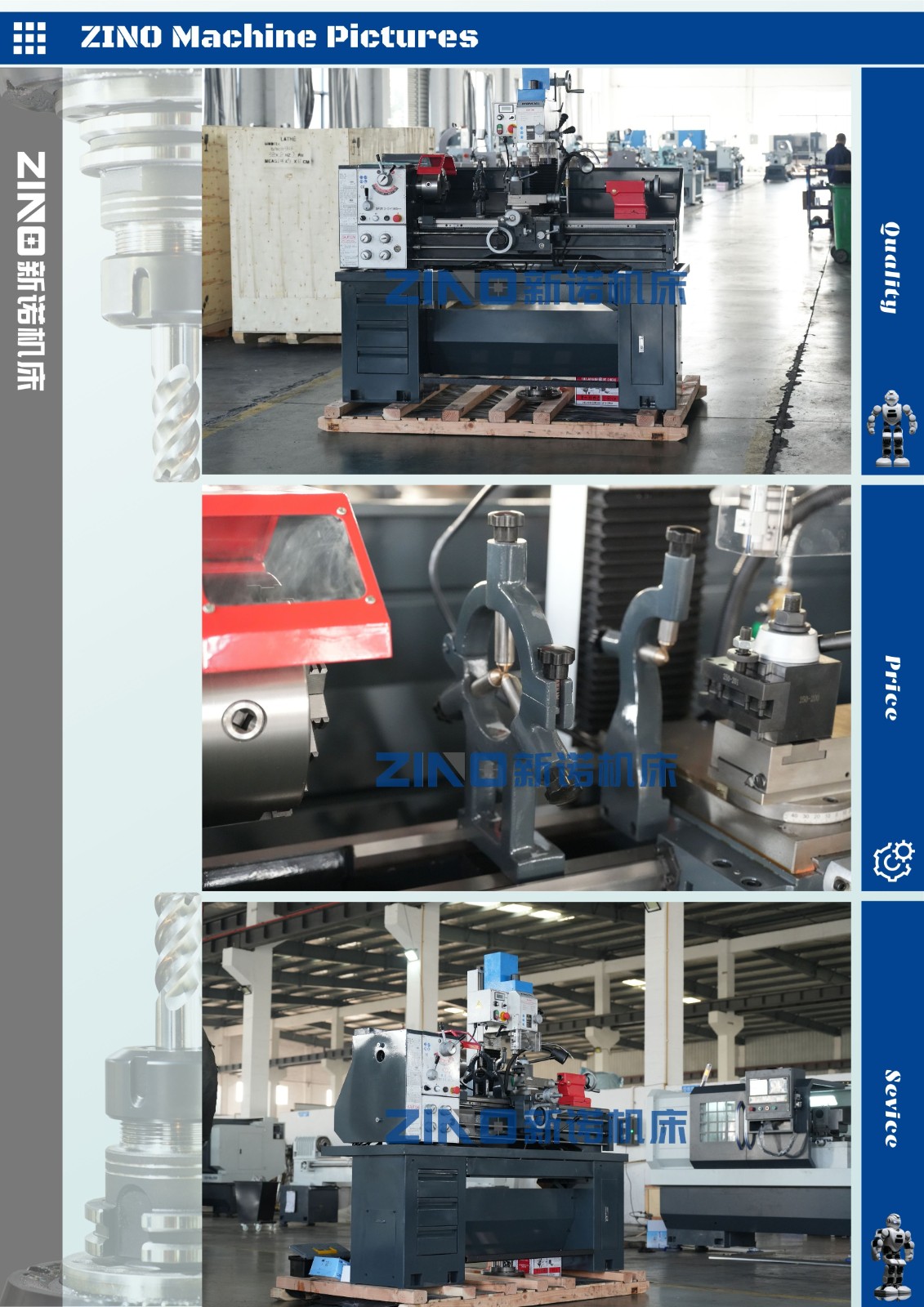

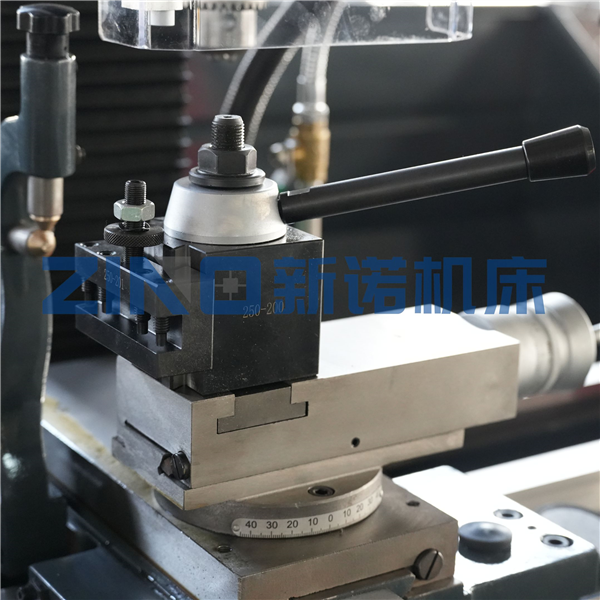

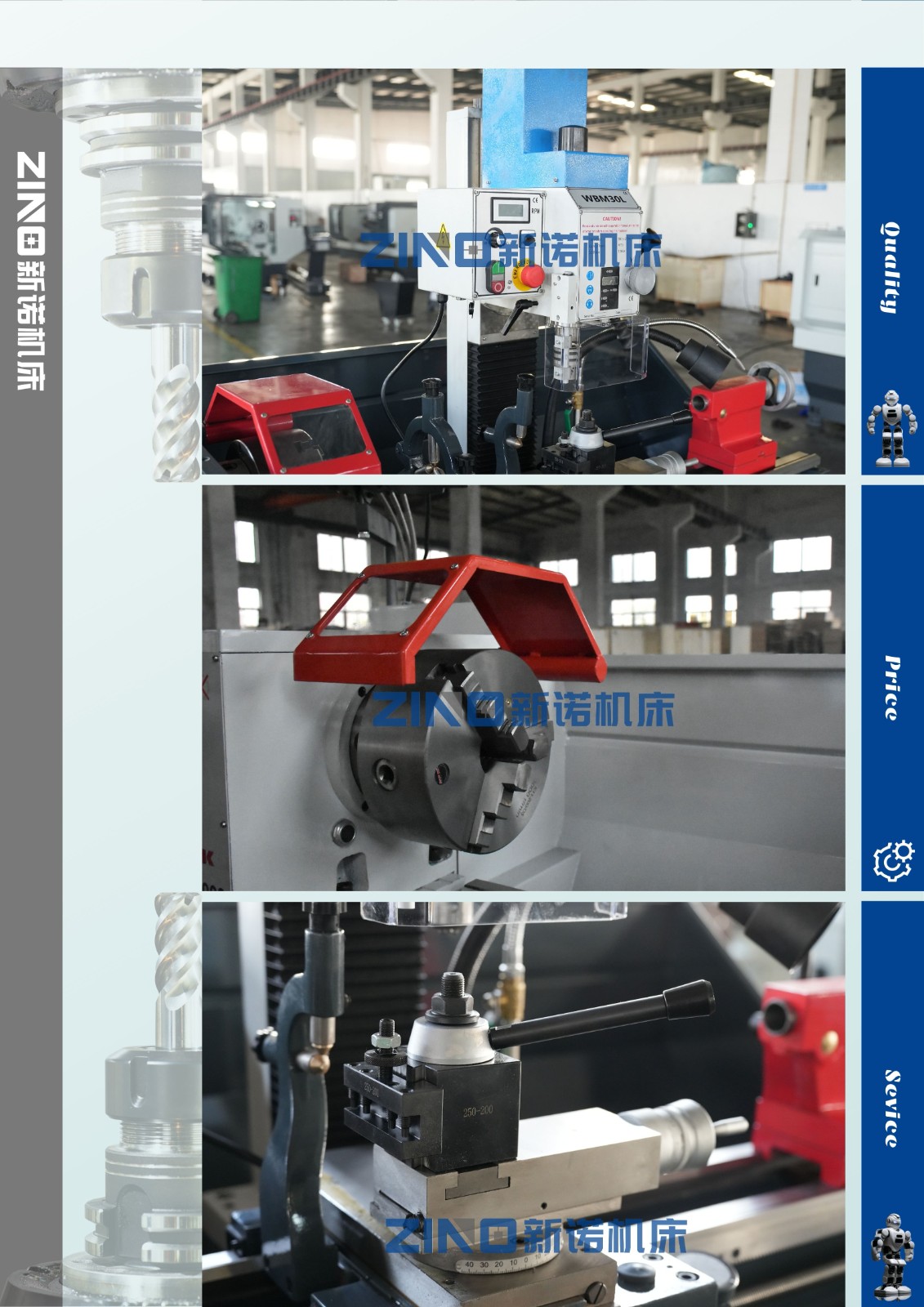

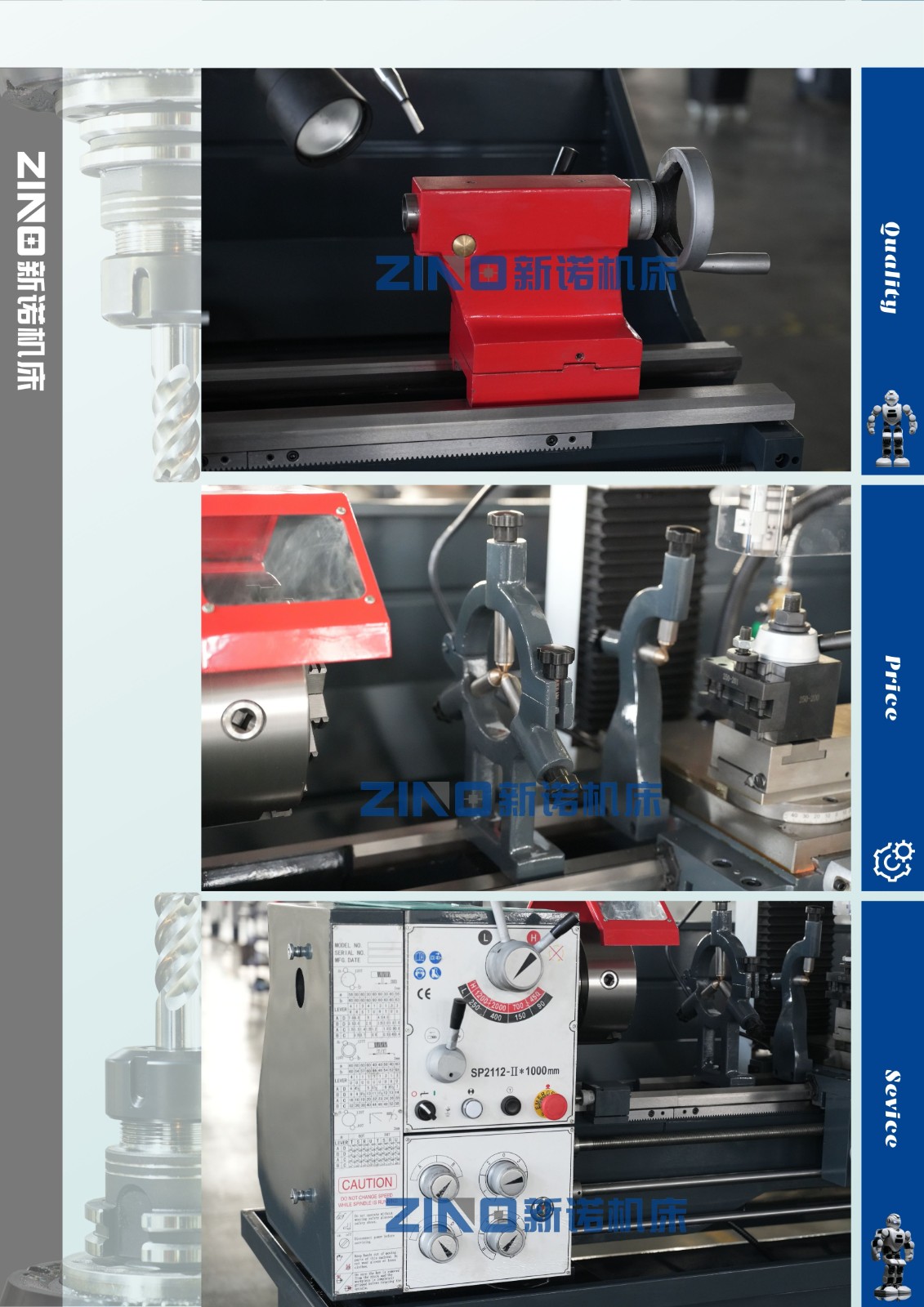

| 项目 | MODEL | CQ6236A-M | |
| Capacity | |||
| 床身导轨长度 | Processing length | mm | 1000 |
| 床身回转直径 | Swing over bed | mm | Φ360 |
| 马鞍回转直径 | Swing in gap | mm | Φ491 |
| 拖板回转直径 | Swing over cross slide | mm | Φ212 |
| 床身导轨宽度 | Bed width | mm | 187 |
| 主轴中心高 | Centre height | mm | 178 |
| 主轴 | Spindle | ||
| 主轴端部型号 | Spindle nose | D4 (opt: D5) | |
| 主轴通孔锥度 | Taper of spindle bore | MT5 (opt: MT6) | |
| 主轴通孔直径 | Spindle bore | mm | Φ38 (opt: Φ51) |
| 主轴转速范围 | Spindle speed: Gear steps / Range | RPM | 8 Steps 70--2000 rpm (opt: 90--2000 rpm) |
| 螺纹切削 | Thread cutting | ||
| 英制范围/种类 | Threads Inch pitches | mm | 34kinds 4--56T.P.I |
| 公制范围/种类 | Threads metric pitches | mm | 26kinds 0.4--7mm |
| 径节制螺纹规格 | Threads diametral pitches | m/min | - |
| 模数制螺纹规格 | Threads module pitches | - | |
| 进给范围 | Feeds Range | ||
| 中拖板横向行程 | Cross slide travel | mm | 170 |
| 小拖板纵向行程 | Top slide travel | mm | 90 |
| 纵向进给范围 | Longitudinal feeds | mm/rev | 32 kinds/ 0.052--1.392mm/rev |
| 横向进给范围 | Cross feeds | mm/rev | Metric lathe / 0.009--0.253mm/rev Inch lathe / 0.015--0.402mm/rev |
| 尾座 | Tailstock | ||

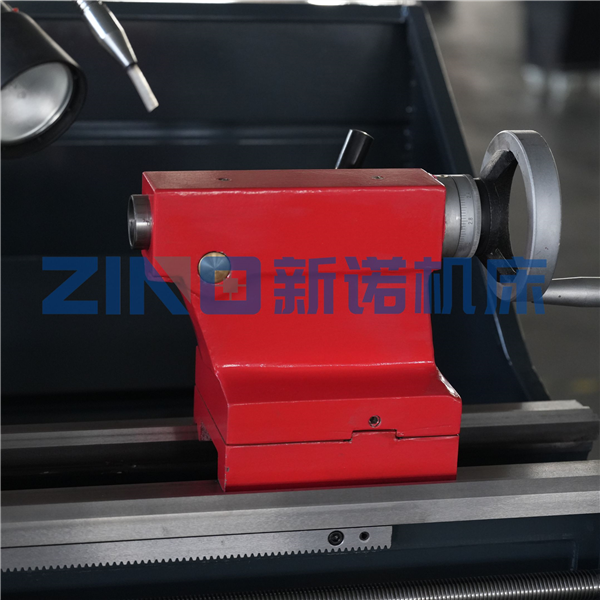

| 套筒外径 | Quill diameter | mm | Φ32 |
| 套筒行程 | Quill travel | mm | 100 |
| 内孔锥度 | Taper of center | mm | MT3 (opt: MT4) |

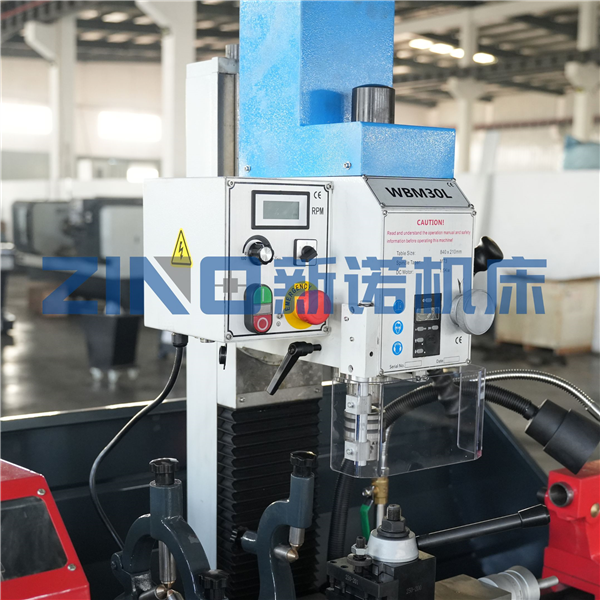

| 立铣头 | Mill head | ||
| 主轴电机功率 | Spindle motor power | kw | 1.5KW |
| 钻孔能力 | Drilling capacity | mm | Φ30mm |
| 面铣能力 | Surface milling capacity | mm | 78mm |
| 主轴锥度 | Spindle taper | MT #3 | |
| 主轴行程 | Spindle travel | mm | 70mm |
| 主轴转速 | Spindle speed | rpm | 50--2250rpm |
| 主轴到工作台距离 | Distance between spindle and worktable | mm | 470mm |
| 主轴到立柱距离 | Distance between spindle and column | mm | 190mm |
| 铣头尺寸 | Mill head size | mm | 540x480x1070 |
| 电机 | Motor | ||
| 主电机功率 | Spindle motor power | KW | 1.5 |
| 冷却泵功率 | Coolant pump power | W | 40 |
| 尺寸 | Measurement | ||
| 刀杆尺寸 | Tool shank size | mm | 16 x 16 |
| 包装尺寸 | Packing size L W×H | mm | 1940*1120*1500 |
| 毛重 | Gross weight | kg | 800 |
