1. Swing over bed -660mm
2. Length -1000/1500/2000/3000mm
3. Spindle bore -Φ105mm
4. Spindle Motor -7.5kw
5. Spindle speed -16 steps/25--1600rpm
6. Manual Chuck -Φ315mm
Model
Nature
Visits
Update
Description

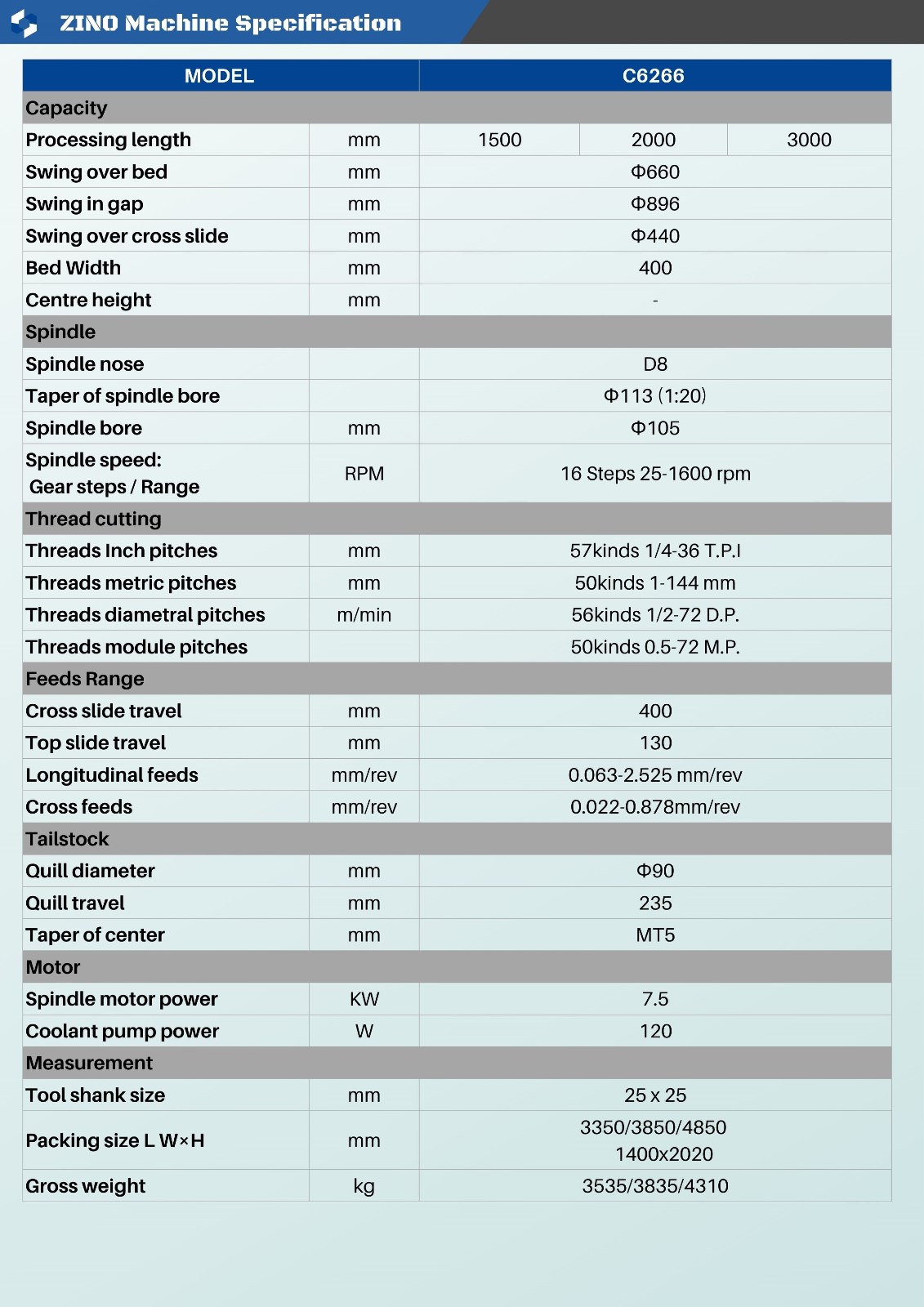

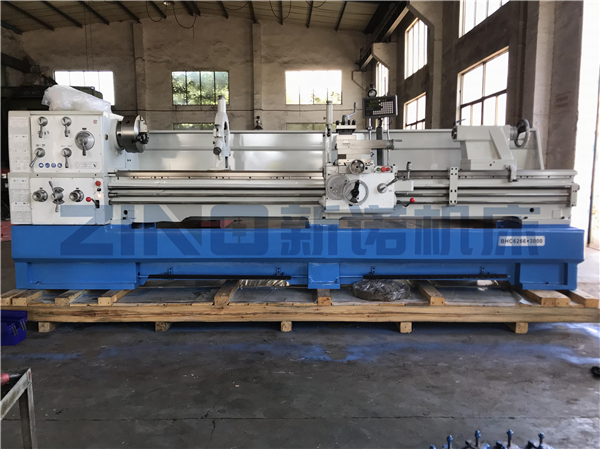

Model NO. | C6266 | Type | Horizontal Lathe |
Precision | High Precision | Certification | CE, ISO 9001 |
Condition | New | Max. Swing Over Bed | 660mm |
Spindle Seed | (16steps) 25-1600 Rpm | Max.Length of Workpiece | 3000mm |
Motor Power | 7.5 Kw | Spindle Bore | Φ105mm |
Tailstock | Manual Tailstock | 3-Jaw Chuck | Self-Centering Chuck/315mm |
Voltage | 380V, 50Hz, 3pH | 4-Jaw Chuck | Independent Chuck/ 400mm |

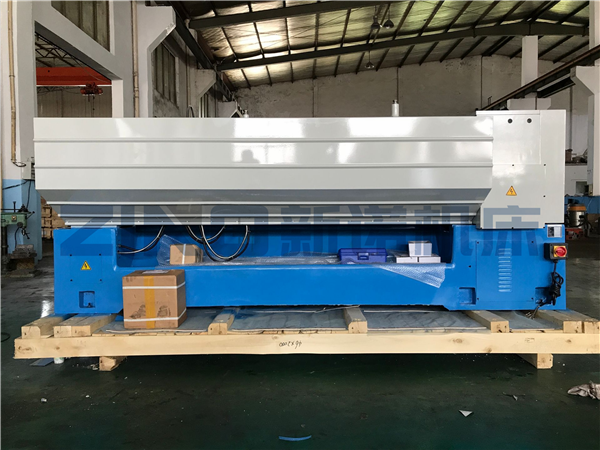

Width of Bed | 400mm | Transport Package | Standard Wooden Case |
Specification | 4740x1140x1840mm | Trademark | ZINO |
Production Capacity | 300 Pieces / Year | HS Code | 8458990000 |
Origin | Jiangsu Province |
