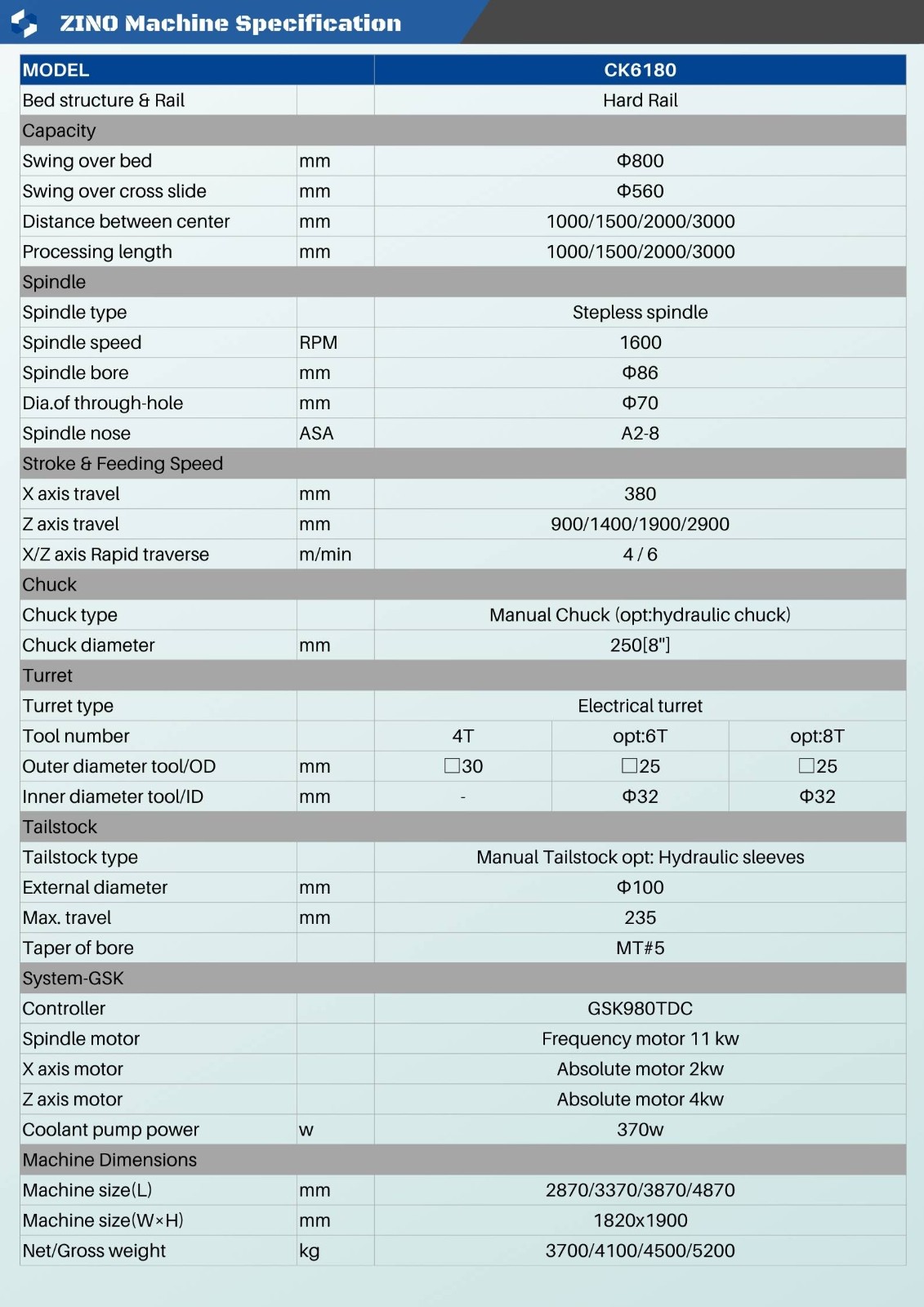

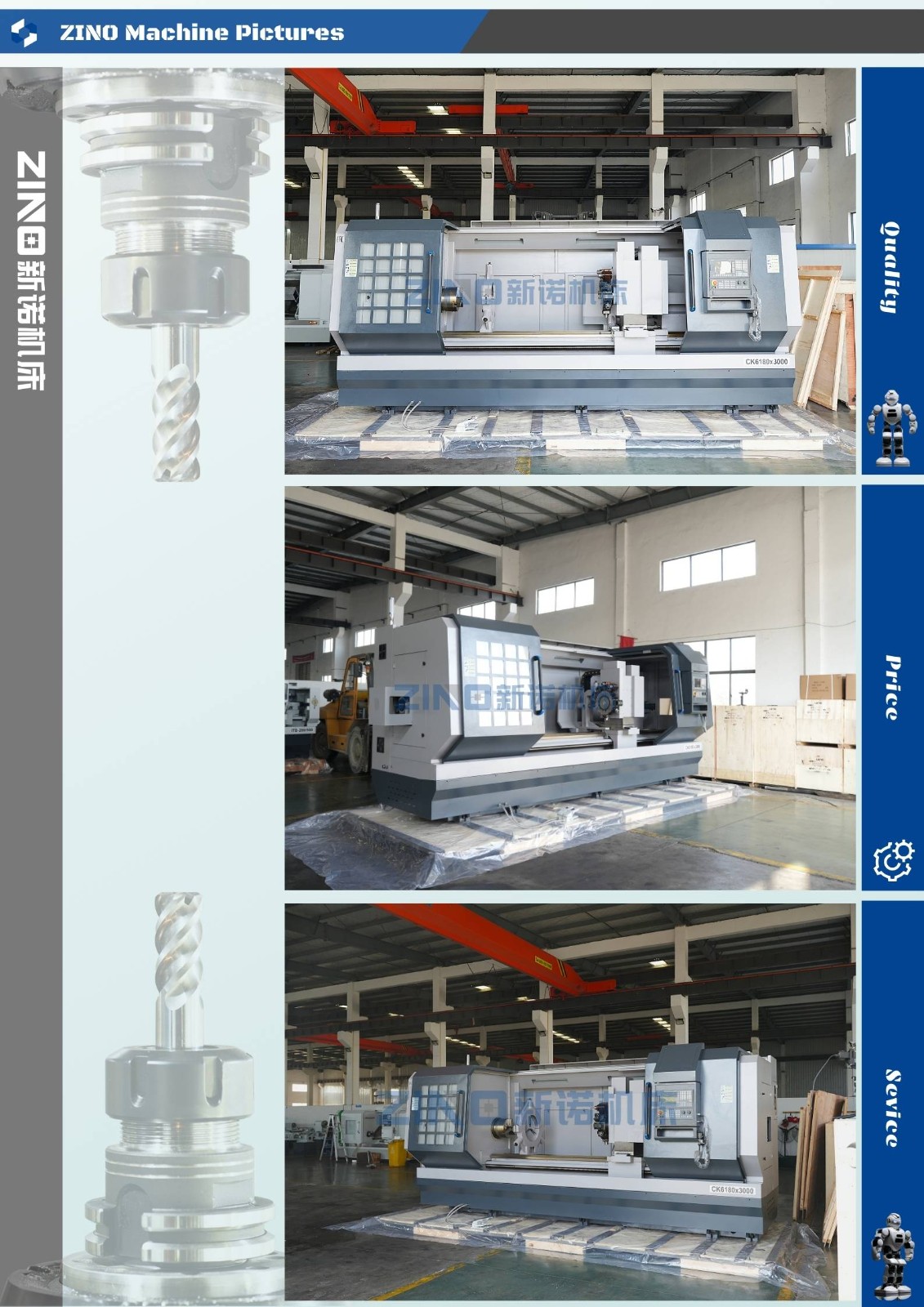

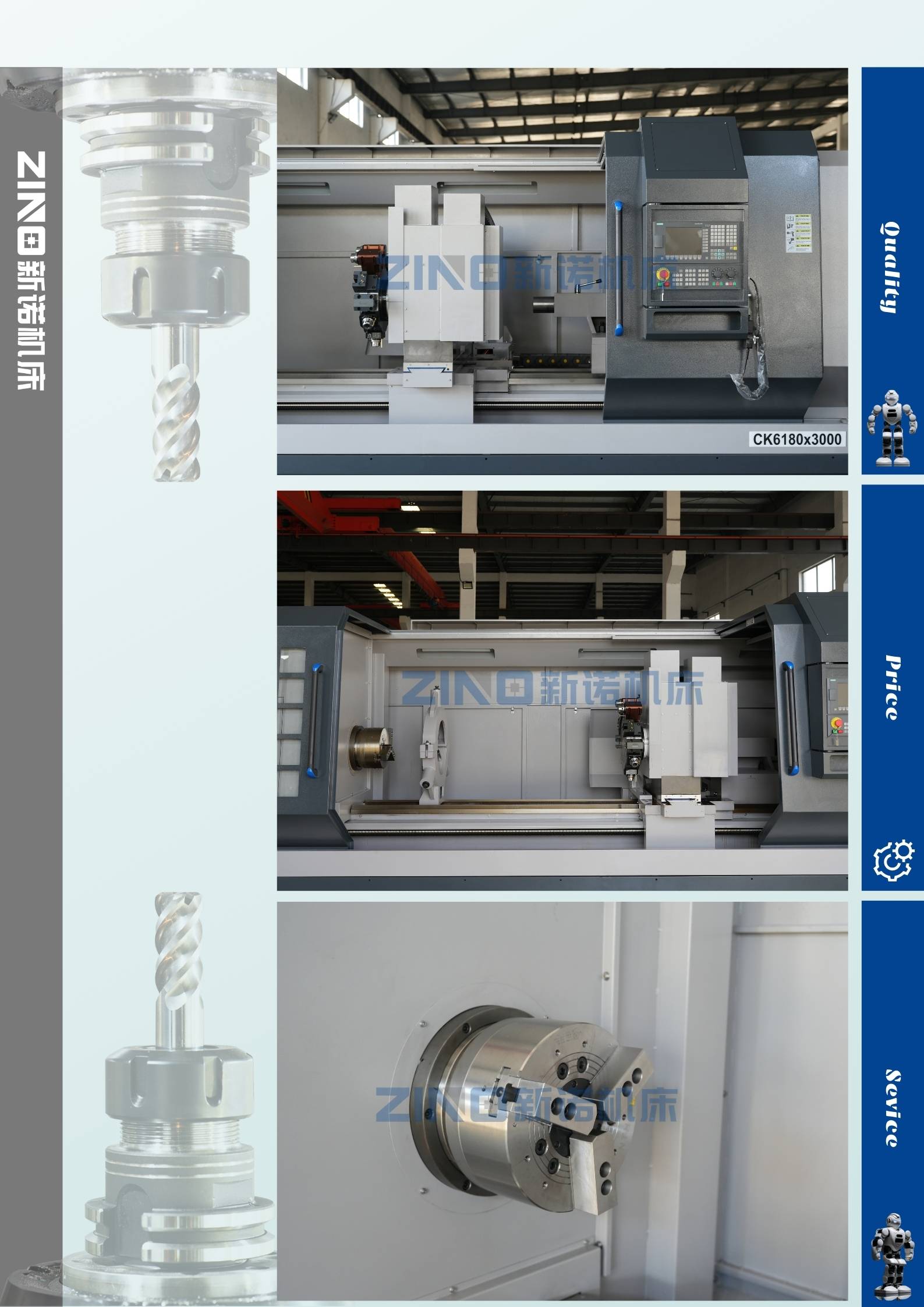

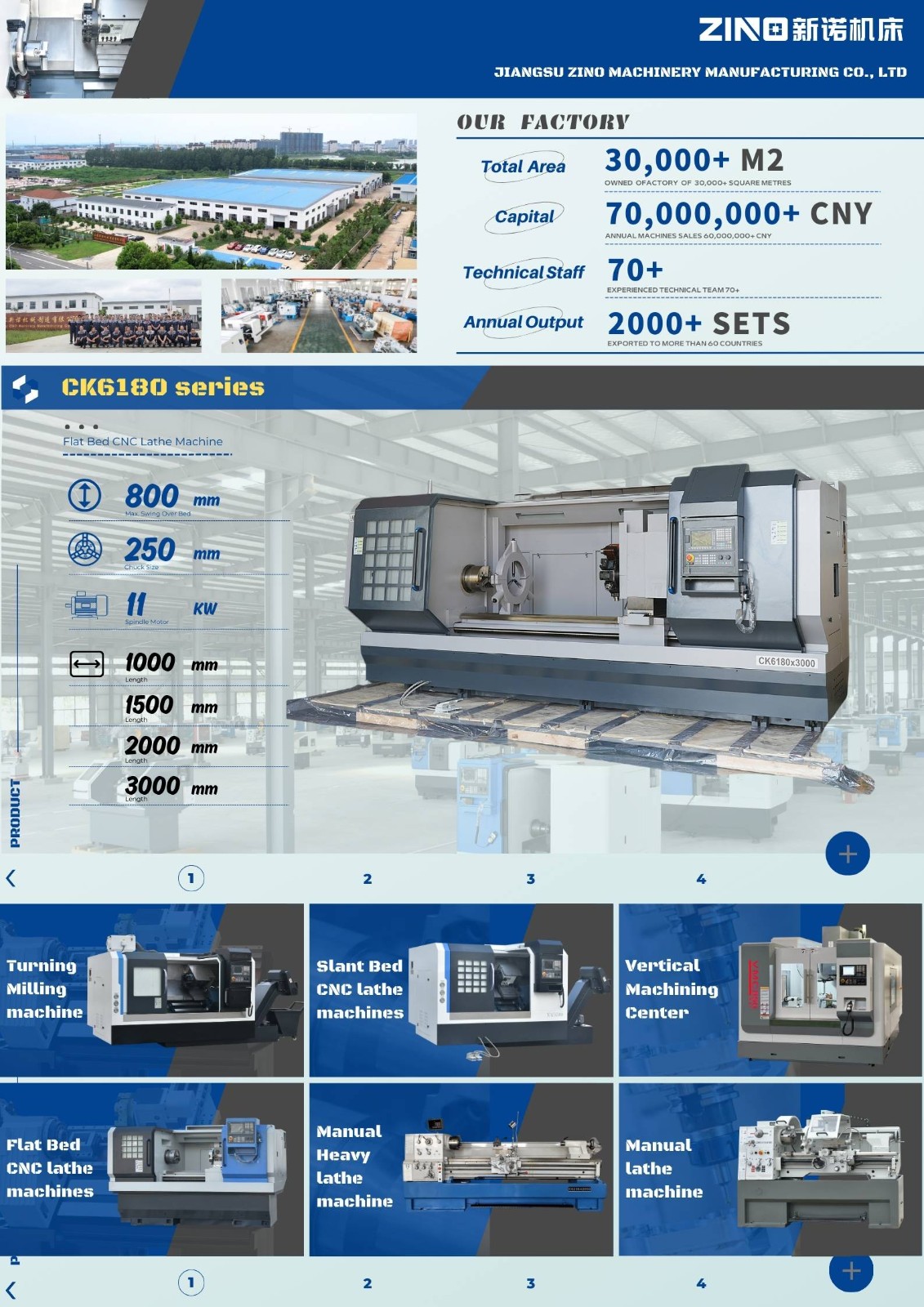

CK6180-MCY

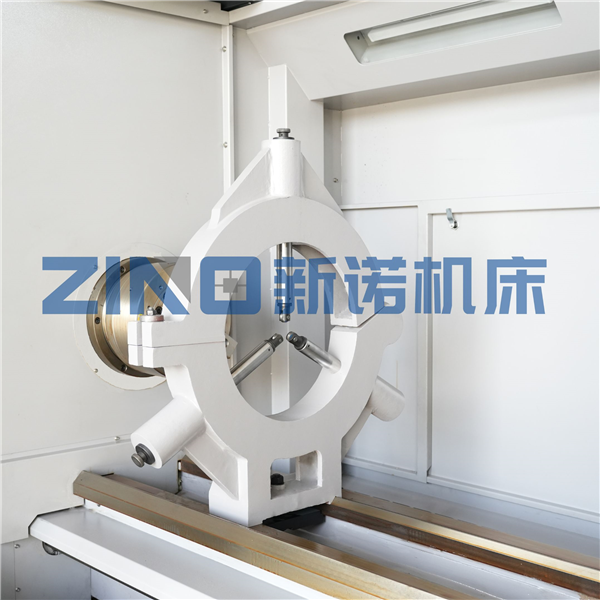

Bed structure & Rail

Flat Bed CNC lathe- Hard Rail

Capacity

Swing over bed

mm

Φ800

Swing over cross slide

mm

Φ560

Distance between center

mm

1000

1500

2000

3000

Cutting diameter

mm

Φ800

Processing length

mm

900

1400

1900

2900

Spindle

Spindle type

Stepless spindle

Spindle speed

RPM

1600

Spindle bore

mm

Φ86

Dia.of through-hole

mm

Φ70

Spindle nose

ASA

A2-8

Taper of spindle bore

Φ90mm  1:20

Stroke & Feeding Speed

X axis travel

mm

380

Z axis travel

mm

900

1400

1900

2900

X/Z axis Rapid traverse

m/min

4 / 6

Chuck

Chuck type

3 Jaw Manual Chuck (opt:* Hydraulic Chuck)

Chuck diameter

mm

250 [10'’]

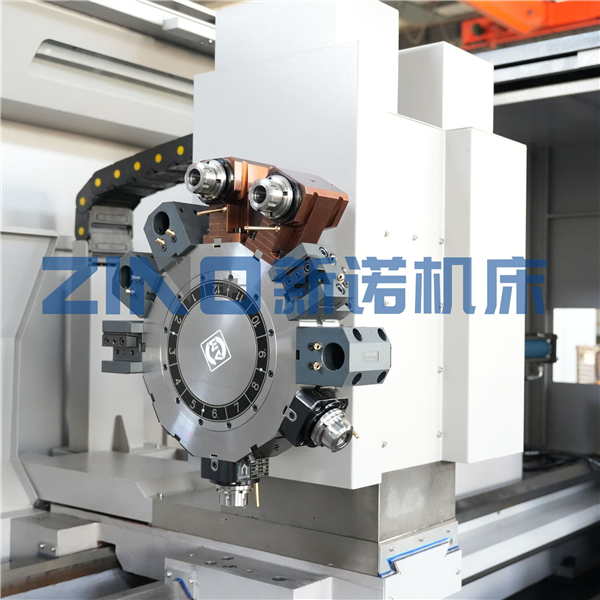

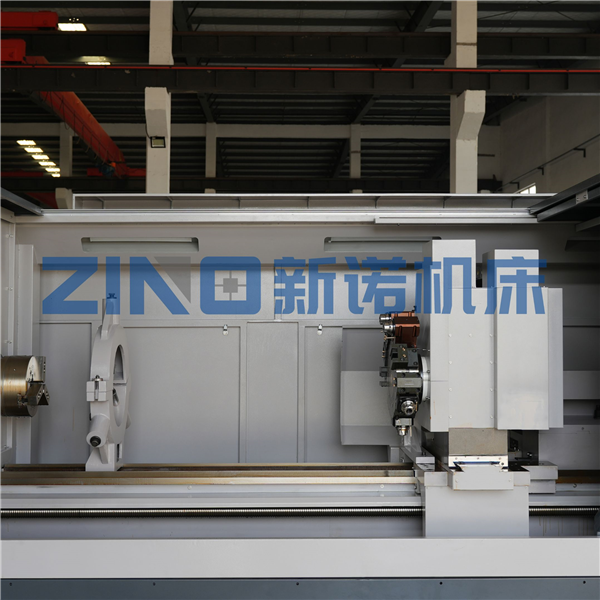

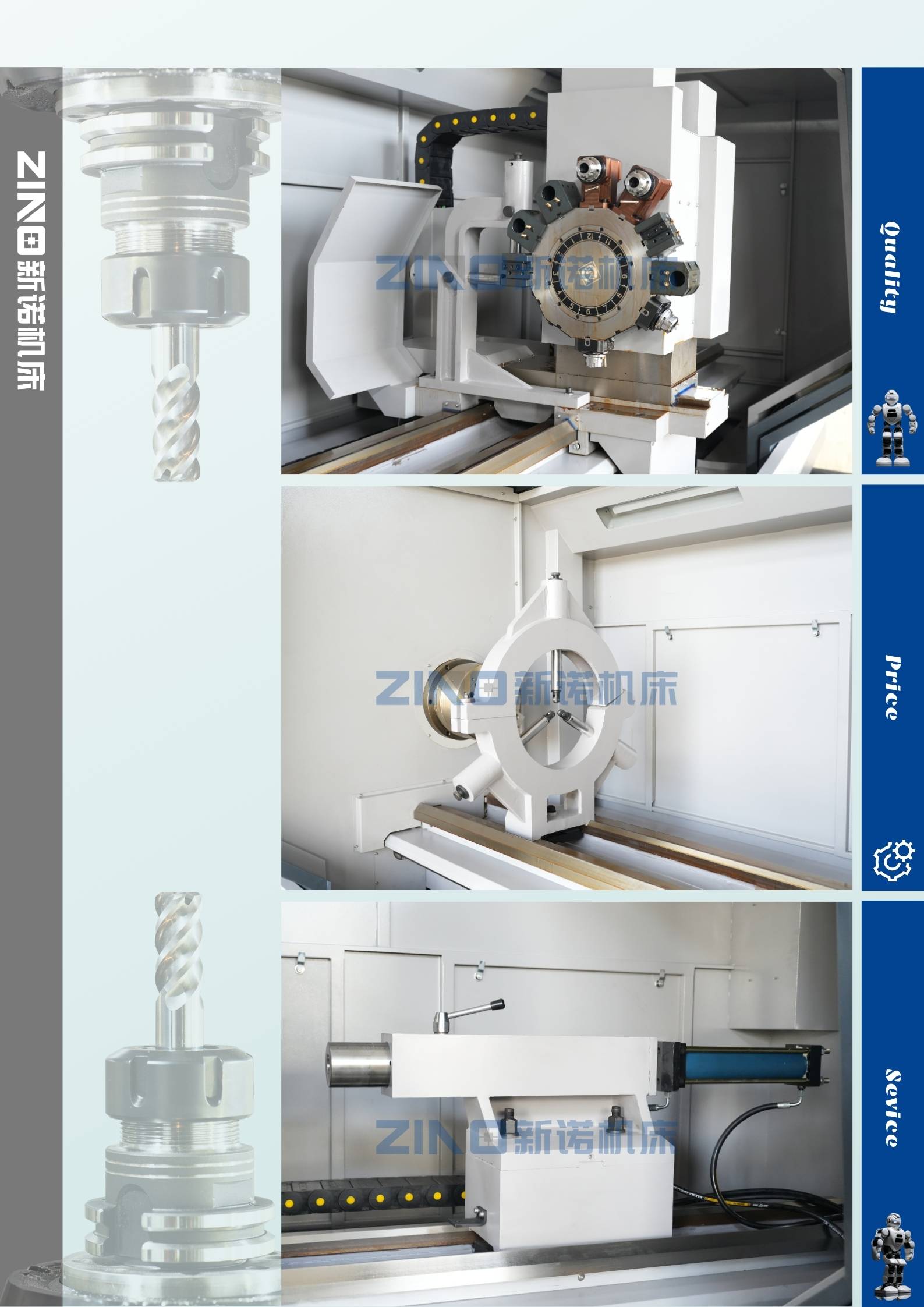

Turret

Turret type

Electrical turret

Tool number

     4T     /   (opt:*6T)     /  (opt:*8T)

Outer diameter tool/OD

mm

□30   /      □25       /     □25

Inner diameter tool/ID

mm

Φ -    /      Φ32      /     Φ32

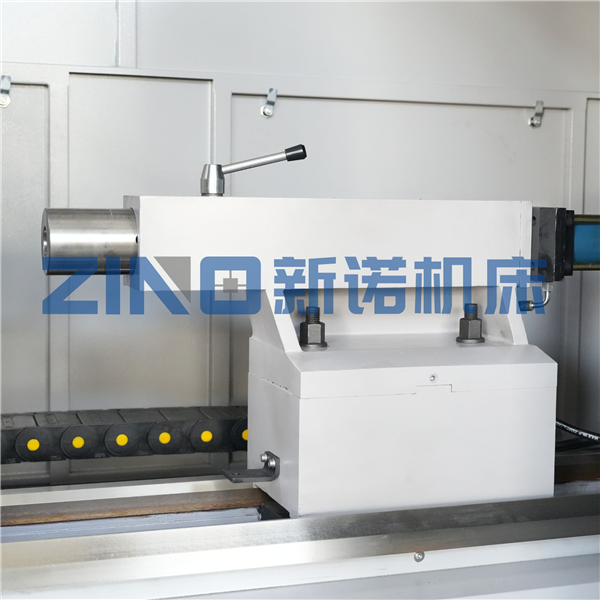

Tailstock Sleeve

Tailstock type

Manual Tailstock (opt: * Hydraulic Tailstock)

External diameter

mm

Φ100

Max. travel

mm

235

Taper of bore

MT#5

System-SIEMENS

Controller

SIEMENS 808D-15

Spindle motor

Variable frequency motor 11kw

X axis motor

Incremental motor 2kw

Z axis motor

Incremental motor 4kw

System-GSK

Controller

GSK 980TDC

Spindle motor

Variable frequency motor 11kw

X axis motor

Absolute motor 2kw

Z axis motor

Absolute motor 4kw

System-FANUC

Controller

FANUC Oi-TF Plus

Spindle motor

Variable frequency motor 11kw

X axis motor

Absolute motor 2kw

Z axis motor

Absolute motor 4kw

Coolant pump power

w

370w

Machine Dimensions

Machine size ( L )

mm

2870

3370

3870

4870

Machine size(W×H)

mm

1820x1900

Gross weight

kg

3700

4100

4500

5200
