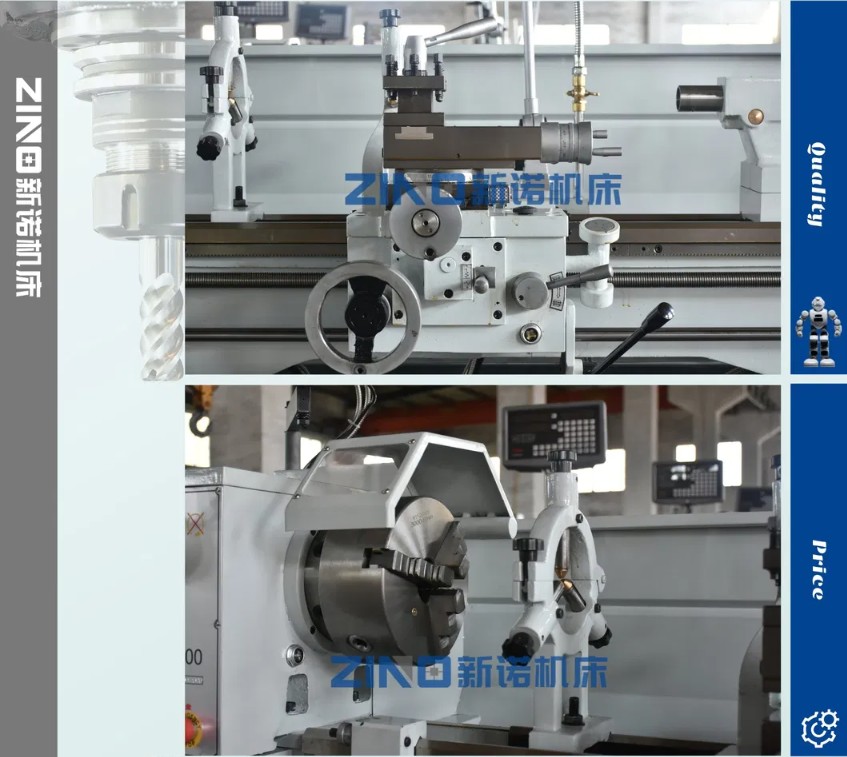

Model NO:C0636G
Type:Horizontal Lathe
Certification:CE, ISO 9001
Spindle Seed:(8steps) 90-2000rpm
Max. Length of Workpiece:1000mm
Model
Nature
Visits
Update
Description

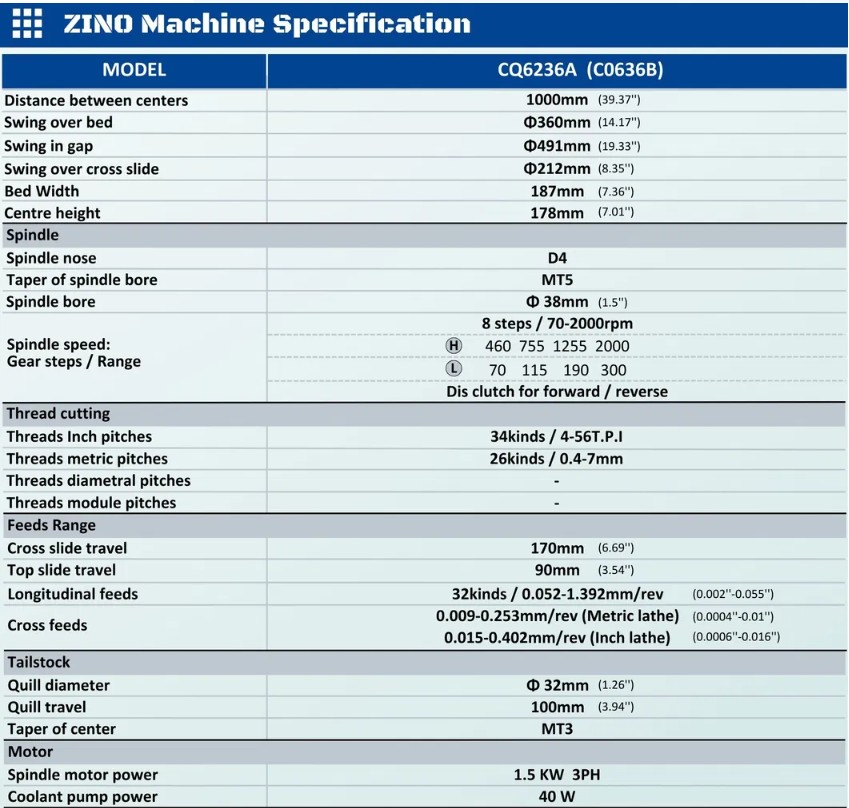

Model NO. | C0636G | Type | Horizontal Lathe |
Certification | CE, ISO 9001 | Precision | High Precision |
Condition | New | Max. Swing Over Bed | 360mm |
Spindle Seed | (8steps) 90-2000rpm | Max. Length of Workpiece | 1000mm |
Motor Power | 1.5kw | Spindle Bore | 51mm |
Tailstock | Manual Tailstock | 3-Jaw Chuck | Self-Centering Chuck/ 200mm |
Voltage | 380V, 50Hz, 3pH | 4-Jaw Chuck | Independent Chuck/ 200mm |
Width of Bed | 178mm | Transport Package | Standard Wooden Case |
Specification | 1950X750X1600mm | Trademark | ZINO |
Origin | Jiangsu Province | HS Code | 8458990000 |
Production Capacity | 400 Pieces / Year |
